Detalles del Producto

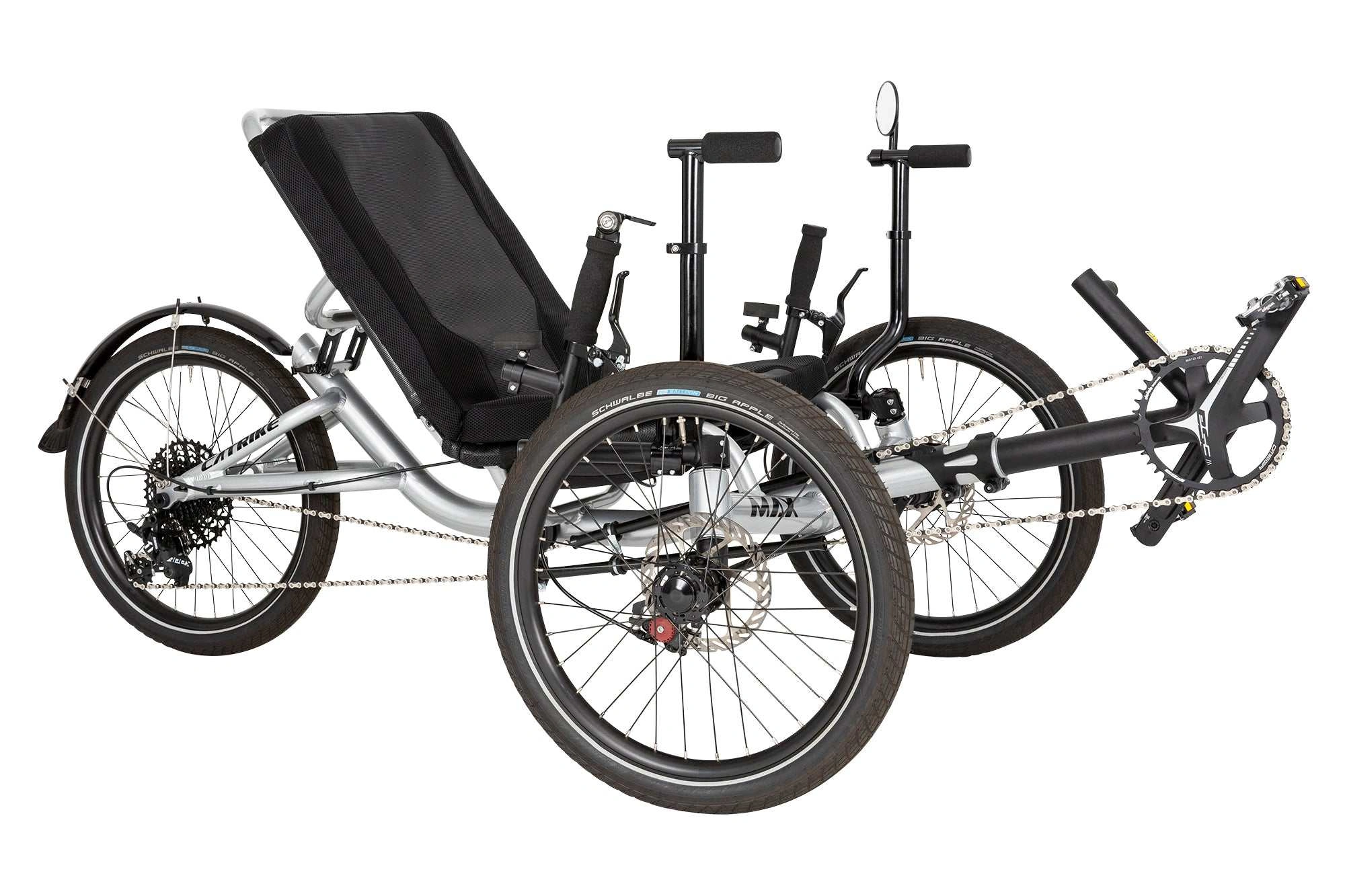

The all-new MAX offers a higher/wider seat and incorporates a larger diameter Cross-Member and wide sturdy rims to accommodate 425 lbs of rider and gear weight. In addition, it is equipped with Schwalbe Big Apple tires, 1x11 SRAM drive train and the new Catrike Assist Bars that help support the rider when getting in and out of the seat. It is the most robust model in our line and has all the features you have come to expect on a Catrike: Avid disc brakes, signature hand rest, Catrike Peace Boom, adjustable seat angle, locking brake levers and Ackerman Steering. Enjoy fun, adventures and freedom aboard the Catrike MAX!

The Catrike MAX ships in 1-2 weeks after we receive the order.

We charge a flat rate of $369 for shipping via freight in most of the Continental US. We do not ship Catrikes outside of the US. There are few zip codes in the US that are more expensive - we will reach out to discuss if this is an issue. It’s usually the very rural locations.

The bike comes 100% fully assembled. We require that all shipped Catrikes are ordered with a boom adjust kit so you just adjust the boom to the proper length, adjust the seat and handlebars to your liking and go for a ride! If you order additional parts with the bike, our website may charge you additional shipping. When we receive the order, we will refund that amount.

A final note about ordering bikes on our website: We will always call you after you place your order to discuss your build, make sure all of the options are correct and ensure that it is the right bike for you. If we need to make changes, additions or cancellations, we will happily do that - we want to make sure you are happy with your new bike. We will NEVER just ship out a bike without a conversation.

Frame & Geometry

                                          US                 metric

Wheel Base                     40 in           1880 mm

Wheel Track                    34 in             864 mm

Total Width                     37.25 in         946 mm

Total Length**                 74 in           1879 mm

Seat Angle                      47/57 deg

Weight                             40 lb                18 Kg

Seat Height                     14.25 in        362 mm

Seat Width                      16 in              406 mm

BB Height**                    16.25 in         414 mm

Ground Clearance         6 in                152 mm

Total Height                    32.25 in         819 mm

Height w/ Seat Folded   25.25in          641 mm

Turning Circle                 14.5 ft               4.4 m

Turning Radius               7.25 ft               2.2 m

Rider Weight Limit***   425 lb              193 Kg

Rider X-Seam Range      39/46 in    99/117cm

Components

Brakes Avid BB7 Disc Brakes

Brake Levers Catrike Locking Brake Levers

Front Derailleur   N/A

Rear Derailleur SRAM APEX 11-Speed

Shifters SRAM 500 TT Bar End Shifter

Crankset FSA Omega Abs 165mm

Bottom Bracket FSA Road MegaExo

Chainrings FSA 42T

Chain Guard N/A

Cassette SRAM 11/42 11 Speed

Chain KMC e11

Idler TerraCycle Sport Power Idler 15T

Headsets FSA Zero Stack

Front Tires 406 Schwalbe Big Apple Performance 2.0

Rear Tire 406 Schwalbe Big Apple Performance 2.0

Standard Features

Rear Fender

Flag Mount & Flag

Mirrycle Rear View Mirror

Multi Purpose Clipless Pedals

Computer Sensor Mount

No Brake Steer

Self Centering Steering

Ackermann Steering Compensation

Structural Front Boom

Quick-Release Indexing Boom Clamp

Aluminum Rod Ends

Adjustable Assist Bars

12x142 Rear Thru Axle

20mm Front QR Thru Axle
